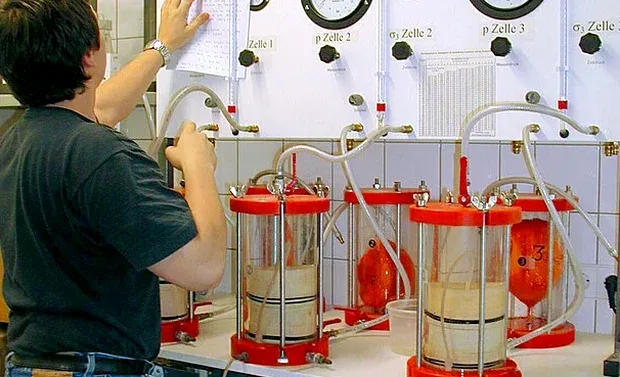

Laboratory CBR Test in Jacksonville: Geotechnical Pavement Strength for Coastal Plain Soils

The subsoil in Jacksonville is a product of the Atlantic Coastal Plain: a sequence of marine terraces, Pleistocene sands, and interbedded clays that transition from loose surface deposits to the coquina and limestone of the Floridan aquifer. Anyone who has excavated a retention pond or a simple footing in Duval County knows the water table sits barely four to six feet down across much of the city. When the Florida Department of Transportation designs a roadway or a commercial parking lot in Jacksonville, the first question is not just about compaction; it is about how the native A-3 or A-2-4 material will behave when saturated. The laboratory CBR test gives us that answer with a number that directly feeds into the pavement section catalog. In areas near the St. Johns River, we often pair this index with a grain-size analysis to confirm whether the fines content will trigger capillary rise under the asphalt layer, a failure mode we see too often in older retail plazas.

A soaked CBR value of 3 in Jacksonville's natural subgrade can mean the difference between a 12-inch flexible section and a full lime-stabilized base.

How we work

We run the test strictly under ASTM D1883, but the interpretation always ties back to the FDOT Standard Specifications for Road and Bridge Construction, specifically the subgrade and base course requirements. Jacksonville's geology forces you to think about soaked CBR values from the start. A sample compacted at optimum moisture content in the lab can lose forty percent of its strength after a four-day soak, which is exactly what happens during a typical summer afternoon thunderstorm cycle. The test involves compacting the material in a six-inch mold using a standard or modified Proctor effort, then penetrating it with a piston at 0.05 inches per minute. We record the stress at 0.1-inch and 0.2-inch penetrations and compare it against the standard crushed stone reference. For projects on the Westside, where residual clay layers appear, we sometimes recommend complementing the CBR with Atterberg limits to quantify the plasticity index, because a PI above 15 combined with a low soaked CBR is a recipe for longitudinal cracking.

Local geotechnical context

Jacksonville's consolidation of the old City of Jacksonville with Duval County in 1968 created a sprawling metropolitan footprint that pushed infrastructure deep into former pine flatwoods and marshland. The development boom of the 2000s left behind hundreds of miles of collector roads and subdivision streets built on subgrades that were never properly characterized. We still encounter forensic cases where the pavement base failed prematurely because the design assumed a CBR of 10 based on a borrowed regional table, while the actual soaked CBR of the silty subgrade was closer to 4. The risk is not just rutting; it is the progressive loss of structural number in the asphalt layer, leading to alligator cracking that propagates with every tidal cycle of the water table. A single laboratory CBR test on a bulk sample costs less than the repair of one failed panel, yet it remains the most frequently skipped step in small-scale commercial development.

Typical values

Parameter	Typical value
Standard reference	ASTM D1883 / AASHTO T 193
Mold diameter	6 in (152.4 mm)
Piston penetration rate	0.05 in/min (1.27 mm/min)
Penetration readings	at 0.1 in and 0.2 in
Compactive effort	Standard or Modified Proctor
Soaking condition	4-day soak (simulates saturation)
Surcharge weight	10 lb minimum
Typical local soaked CBR (A-3 sand)	8 - 20

Complementary services

Soaked Laboratory CBR

The standard test for subgrade and base materials in Jacksonville. We compact three points of the moisture-density curve, soak the specimens for 96 hours, and measure the penetration resistance. The report includes the CBR value at 0.1-inch and 0.2-inch penetration, the swell percentage, and the moisture content before and after soaking.

Unsoaked and Surcharged CBR

For granular bases above the water table or for design scenarios where the subgrade will be protected from saturation by a drainage system. We apply a surcharge weight that simulates the overlying pavement weight and run the penetration immediately after compaction, without the soaking phase.

Questions and answers

What is the typical soaked CBR value for subgrade soils in Jacksonville?

The value depends heavily on the soil type. Clean A-3 sands common in the Arlington and Southside areas typically yield soaked CBR values between 8 and 20. Silty sands and A-2-4 materials found in the Northside and near the river can drop to 5-10. Clays with a plasticity index above 15, which appear in pockets on the Westside, often show soaked CBR values between 2 and 5. These numbers are why FDOT often requires soil stabilization before placing the base course.

How much does a laboratory CBR test cost in Jacksonville?

A standard soaked CBR test on a single sample, including the Proctor compaction curve, runs between US$140 and US$190. The final cost depends on the number of points on the moisture-density curve and whether the sample requires additional classification tests. We always provide a fixed quote before starting the work.

Does FDOT require the laboratory CBR test for pavement design?

Yes. The FDOT Pavement Design Manual requires the use of the AASHTO 1993 design method, which takes the effective roadbed soil resilient modulus as an input. The laboratory CBR test is one of the accepted methods to estimate that modulus through the standard correlation equation. For local roads and commercial projects, the county often accepts a direct CBR-based design table, but we recommend confirming the specific requirements with the reviewing engineer during the permit phase.

How long does the CBR test take from sample to report?

The laboratory process typically takes five business days. The main bottleneck is the four-day soaking period required by ASTM D1883. Sample preparation, compaction, and the penetration test itself add one more day. Expedited turnaround is possible if the project schedule requires it, but the soaking time cannot be shortened without deviating from the standard.
