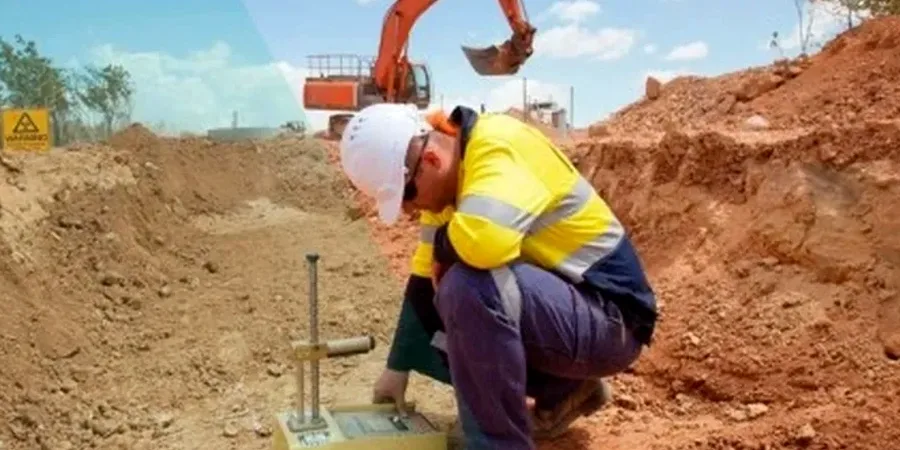

Seismic Microzonation Studies in Jacksonville, Florida

ASCE 7-22 and the Florida Building Code define seismic design parameters that engineers must address before foundation work begins. Jacksonville occupies a transitional zone where Atlantic coastal plain sediments meet weathered limestone formations, creating variable site amplification effects that standard hazard maps overlook. The USGS National Seismic Hazard Model assigns the area a modest PGA, yet local soil columns can amplify ground motion by a factor of two or more depending on shear wave velocity contrasts. A seismic microzonation study maps these differences block by block, replacing generic Site Class assumptions with measured Vs30 profiles. The St. Johns River floodplain, near-surface karst cavities in the Ocala Limestone, and deep sand deposits east of I-95 each produce distinct spectral responses that structural designs must accommodate. Our seismic refraction profiles provide the velocity data needed for site-specific response analysis.

Two sites separated by three miles in Jacksonville can amplify the same bedrock motion by factors that differ 100% or more, depending on subsurface stratigraphy.

How we work

Two sites separated by three miles can behave differently under the same earthquake. Downtown Jacksonville rests on a thin surficial sand layer over limestone bedrock—Site Class C or B in many locations, meaning relatively short-period amplification. Cross the St. Johns to the Arlington area and you encounter thicker alluvial sands and organic silts, often classifying as Site Class D or E with pronounced amplification in the 0.5–1.5 second range. This contrast matters for mid-rise structures whose fundamental period falls precisely in that band. The microzonation process involves ambient vibration measurements, downhole shear wave testing, and geologic unit mapping to delineate boundaries between response zones. In areas where the Hawthorne Formation creates an impedance contrast at 20–40 meters depth, we frequently pair microzonation with MASW surveys to resolve Vs profiles efficiently across large parcels. For deep foundations near the river, liquefaction susceptibility screening integrates directly with the zonation framework.

Local geotechnical context

Jacksonville's humid subtropical climate delivers 50 inches of annual rainfall, maintaining a shallow water table that fluctuates seasonally by several feet. This moisture regime keeps near-surface sands in a partially saturated state where pore pressure buildup during cyclic loading can trigger liquefaction in zones mapped as Site Class E or F. The greater hazard, however, is differential settlement amplification: where limestone pinnacles approach the surface beneath a building footprint while adjacent areas have 15 feet of compressible sand, the same ground motion produces sharply different vertical displacements. Karst terrain introduces a second-order risk—cavity collapse under seismic shaking, particularly in the western portions of Duval County where the Ocala Limestone is within 30 feet of grade. A proper microzonation study identifies these boundaries before structural design locks in assumptions that prove incorrect during a rare but possible mid-plate earthquake.

Typical values

Parameter	Typical value
Vs30 range mapped	180–760 m/s (Site Class D to C)
Spectral acceleration periods analyzed	0.2 s (short) and 1.0 s (long)
Site amplification factor (Fa, Fv) per ASCE 7-22	Site-specific, not default table values
Geologic units evaluated	Undifferentiated surficial sands, Ocala Limestone, Hawthorne Formation
Measurement depth for Vs profiles	30 m minimum per IBC Chapter 16
Karst cavity detection method	Crosshole seismic or electrical resistivity tomography
Mapping scale for zonation boundaries	1:5,000 to 1:12,000 depending on parcel size

Complementary services

Site-Specific Ground Motion Analysis

We develop acceleration response spectra using measured Vs profiles and modulus reduction curves, replacing default ASCE 7 Site Class coefficients with computed amplification factors that reflect actual subsurface conditions at the project location.

Vs30 Mapping and Site Classification

Downhole seismic, crosshole, or surface-wave methods establish shear wave velocity to 30 meters depth. Results are contoured across the parcel to delineate boundaries between Site Classes B through E per IBC Table 1613.2.3.

Liquefaction Potential Zonation

In saturated sand layers below the water table, we apply simplified procedure analysis (Seed & Idriss framework) to calculate factor of safety against liquefaction under the design earthquake magnitude, mapping zones of high, moderate, and low susceptibility.

Karst Cavity Seismic Risk Assessment

For sites underlain by Ocala Limestone, we combine electrical resistivity tomography with crosshole seismic tomography to locate cavities, then evaluate their stability under cyclic loading and the potential for collapse-induced ground deformation.

Regulatory framework

ASCE/SEI 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2021 Chapter 16 (Structural Design) and Chapter 18 (Soils and Foundations), ASTM D7400 Standard Test Methods for Downhole Seismic Testing, ASTM D4428 Standard Test Methods for Crosshole Seismic Testing, FHWA Geotechnical Engineering Circular No. 5 (GEC 5) – Geotechnical Site Characterization

Questions and answers

What does a seismic microzonation study cost for a typical Jacksonville commercial site?

For a commercial parcel in Jacksonville, seismic microzonation studies typically range from US$4.600 to US$16.590 depending on site area, number of measurement points required, and whether karst cavity detection is needed. A 2-acre site with straightforward stratigraphy and five Vs measurement locations falls toward the lower end. Sites requiring crosshole seismic for cavity mapping in limestone or deep Vs profiles exceeding 30 meters increase the scope and cost.

Is seismic microzonation required by the Jacksonville building department?

The Florida Building Code references ASCE 7 and IBC Chapter 16, which permit site-specific ground motion analysis as an alternative to default Site Class coefficients. While not always mandatory, microzonation becomes essential when subsurface conditions suggest Site Class D, E, or F—common in Jacksonville's floodplain and deep sand areas—or when the structural design requires a more precise understanding of spectral acceleration than default maps provide.

How long does a microzonation study take from field work to final report?

Field measurements typically require two to four days depending on the number of Vs profiling locations. Data processing and 1D site response analysis take an additional seven to ten business days. The final report includes zonation maps, acceleration response spectra, and Site Class boundaries suitable for structural engineer integration. Total turnaround from mobilization to deliverables averages three weeks.

How does Jacksonville's karst geology affect seismic site classification?

The Ocala Limestone underlying western Jacksonville introduces lateral stiffness contrasts that complicate Site Class assignment. A single boring may encounter rock at 10 feet while another 100 feet away finds 40 feet of sand over limestone. Default classification methods miss this variability. Microzonation maps these boundaries explicitly so the structural design accounts for differential ground motion across the foundation footprint, rather than applying one averaged Site Class that misrepresents both extremes.
