Jacksonville sits barely 16 feet above sea level on a coastal plain shaped by the St. Johns River, and that low elevation combined with a shallow water table creates a real challenge for conventional footings. More than 950,000 people now live within Duval County, and the city has seen steady vertical growth in neighborhoods like Riverside, San Marco, and the Southbank. When a project encounters loose sandy strata or pockets of organic silt near the surface, a raft/mat foundation design becomes the logical path forward. By spreading structural loads across a single large slab instead of isolated footings, the system reduces differential settlement and compensates for variable bearing capacity. Our technical group has mapped subsurface conditions across Jacksonville’s coastal terrace deposits for years, feeding that local data directly into finite element models. For sites near the Ortega River or along the Trout River tributaries, understanding how the surficial aquifer fluctuates seasonally is critical before locking in slab geometry. We integrate cone penetration data from a cpt test to refine the stiffness profile used in the finite element mesh, ensuring the numerical model reflects real stratigraphy rather than textbook assumptions.
A properly tuned raft model reduces total and differential settlement by distributing structural stiffness where the soil needs it most—no two Jacksonville sites share the same stiffness profile.
How we work

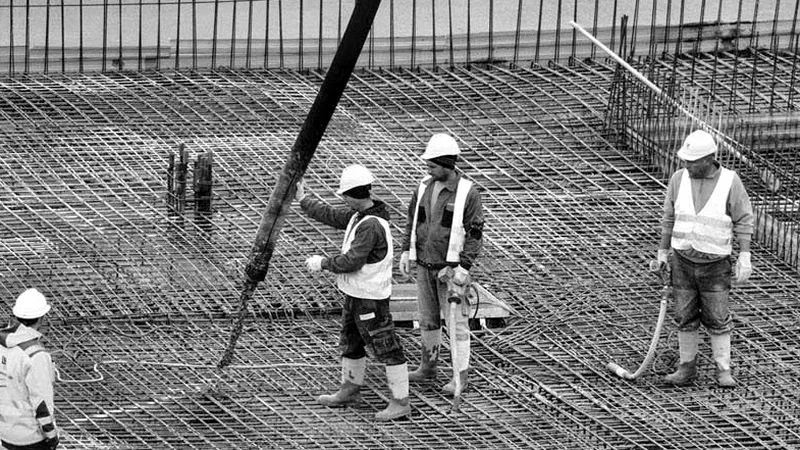

A mixed-use building rising six stories along Bay Street exposed a problem we see often in Jacksonville: stiff limestone at minus 12 feet overlain by loose sand lenses that varied in thickness across the site. The structural engineer initially proposed isolated footings with grade beams, but the geotechnical report flagged a risk of angular distortion exceeding the IBC threshold for masonry partitions. Shifting to a raft/mat foundation design allowed the slab to bridge those soft pockets, and we modeled the soil-structure interaction using modulus of subgrade reaction values derived from both pressuremeter and dilatometer soundings. The thickness tapered from 30 inches under the core to 22 inches at the slab edge, reinforced with two mats of Grade 60 steel. Jacksonville’s humid subtropical climate means the slab must also resist sulfate attack in the upper soil zone, so the concrete mix specified Type II cement with a water-cement ratio capped at 0.45. When site access permits, we supplement the investigation with test pits to visually log the fill history, because downtown Jacksonville has a legacy of buried debris from the 1901 fire that still shows up in borings. That field evidence feeds directly into the geotechnical parameter selection for the raft analysis.
Local geotechnical context
The modeling workstation runs a full three-dimensional soil-structure interaction analysis with plate elements representing the raft and compression-only springs calibrated to the stratigraphy logged in each borehole. Jacksonville’s geology demands that the spring stiffness curve account for the upper 10 to 15 feet of medium-dense sand that often overlies the Hawthorne Group clayey sediments; ignoring that transition can underestimate edge settlement by 30 percent or more. The biggest liability on a Jacksonville raft project is not structural overstress but serviceability failure: partition wall cracking, door frame racking, or slab curling from moisture gradients in the parking level. Because the city’s summer rainfall regularly exceeds seven inches per month, construction joints must be detailed with waterstop systems capable of resisting 15 feet of hydrostatic head. A dewatering plan tied to the in-situ permeability test results is non-negotiable, especially in the Southside area where the surficial aquifer transmits water faster than the contractor expects. When the raft footprint exceeds 10,000 square feet, thermal contraction during curing becomes a secondary design check, and we specify pour sequencing that limits restraint cracking.
Questions and answers
What does a raft/mat foundation design cost for a project in Jacksonville?
For a typical mid-rise building in the Jacksonville area, the combined geotechnical investigation and raft design package ranges from US$1,200 to US$4,200, depending on the number of borings required, the complexity of the soil profile, and whether a peer review is mandated by the jurisdiction.
When is a raft foundation preferred over isolated footings in Jacksonville?
A raft becomes the preferred option when the allowable bearing pressure is below 2,000 psf, when the water table is within five feet of the proposed slab elevation, or when differential settlement between columns would exceed the half-inch limit that IBC sets for most framed structures. Jacksonville’s riverine deposits often trigger two or all three of those conditions on the same site.
How does Jacksonville’s high water table affect raft construction?
The surficial aquifer in Duval County can rise to within two feet of grade during the wet season, so a raft slab must be designed as a watertight structure with properly detailed construction joints, and the contractor needs a dewatering system that can handle the permeability of the local sands—typically 10⁻³ to 10⁻¹ cm/s. The design includes a mud slab and waterproofing membrane below the structural slab.
What soil parameters are most critical for a Jacksonville raft design?
The modulus of subgrade reaction (kₛ) and the coefficient of consolidation (cᵥ) are the two parameters that drive the settlement predictions. In Jacksonville’s coastal plain soils, we derive kₛ from field plate-load or pressuremeter tests, and cᵥ from oedometer tests on undisturbed samples of the Hawthorne Group clays that control long-term consolidation.
How long does the raft design process take from field work to final drawings?
A typical Jacksonville project moves from field investigation to stamped design package in four to six weeks. The field work itself lasts one to two weeks, the laboratory program runs concurrently for about three weeks, and the finite element modeling and reinforcement detailing occupy the final two weeks before the deliverable goes to the structural engineer of record.
