Base Isolation Seismic Design in Jacksonville, Florida

Jacksonville sits on a thin veneer of Pleistocene sands and silts overlying the Floridan aquifer’s karst limestone, with groundwater often within 3 to 6 feet of the surface. The city’s seismic hazard, while moderate, includes a 2% probability of exceeding 0.15g peak ground acceleration in 50 years per the USGS National Seismic Hazard Model. Designing for this environment demands more than conventional fixed-base assumptions. Base isolation seismic design introduces a flexible layer at the foundation level, decoupling the superstructure from ground motion. On Jacksonville’s soft, variable stratigraphy, this approach reduces interstory drift by 60 to 80 percent compared to fixed-base buildings. We integrate site-specific seismic microzonation when subsurface conditions vary across a parcel, ensuring the isolation system is tuned to actual wave propagation characteristics rather than generalized code spectra.

Base isolation in Jacksonville isn’t about surviving the maximum credible earthquake — it’s about maintaining operational continuity the morning after a 500-year event on karst terrain.

How we work

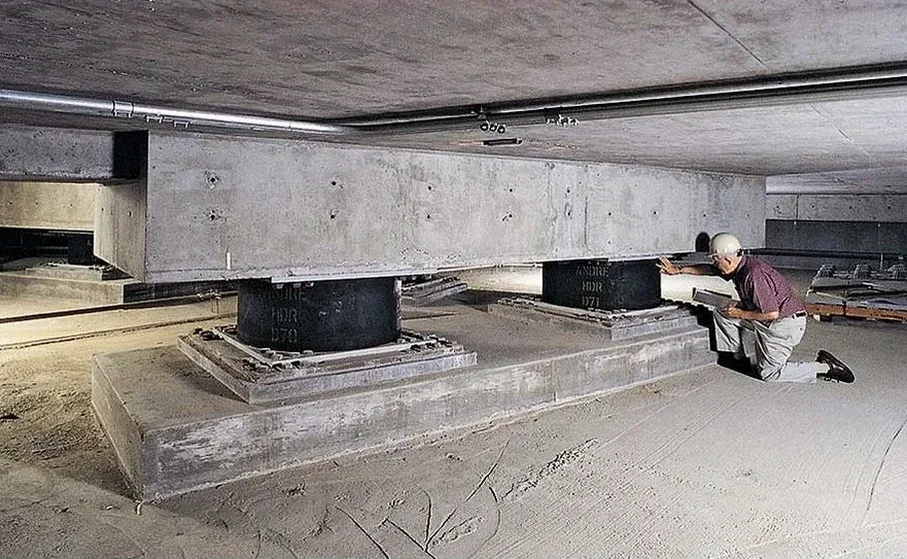

The St. Johns River bisects Jacksonville, and roughly 30 percent of the city’s 875 square miles lies within a Special Flood Hazard Area. This reality drives two critical isolation design parameters: bearing stability under saturated soil conditions and uplift restraint during long-period motion. A base isolation system here typically employs high-damping rubber bearings or friction pendulum sliders, sized per ASCE 7-22 Chapter 17. The moat wall must accommodate 24 to 36 inches of lateral displacement while resisting hydrostatic pressure from the shallow water table. For structures exceeding four stories, we pair the isolation design with a CPT test campaign to map thin compressible lenses within the Hawthorn Group sediments, which can amplify vertical acceleration components. Lead-core elastomeric bearings are often specified for their re-centering capability after a design-basis earthquake, a feature valued by Jacksonville hospital and emergency-response facility owners who cannot tolerate residual drift.

Local geotechnical context

A common mistake in Jacksonville is specifying an isolation system using Site Class C assumptions when borings clearly show Site Class D or E conditions within 100 feet. The AASHTO and ASCE 7 site amplification factors shift significantly between these classes, and underestimating them produces an isolation period too short to be effective. Another error involves ignoring the vertical component of near-field motion; on karst, cavity collapse can generate short-duration, high-amplitude vertical pulses that induce bearing uplift if the isolators lack adequate tensile restraint. Without a geotechnical investigation that includes in-situ permeability and cross-hole sonic logging, the isolation design may rest on an incomplete picture of the rockhead’s integrity, leading to differential settlement at bearing pedestals during a seismic event.

Typical values

Parameter	Typical value
Design spectral acceleration SDS (ASCE 7-22)	0.35g–0.52g (Site Class D/E)
Effective damping ratio	15–30% for HDR bearings
Maximum isolator displacement (MCE)	18–36 in. depending on period shift
Target isolated period	2.5–3.5 seconds
Moat wall clearance	1.5 × D_M (minimum 24 in.)
Upper-bound soil bearing pressure	2,500–3,000 psf (Hawthorn Group)

Complementary services

Nonlinear Time-History Analysis

Site-specific acceleration histories matched to the USGS uniform hazard spectrum for Duval County, run through 3D structural models to verify isolator force-displacement loops and superstructure drift limits.

Isolator Specification & Prototype Testing

Performance criteria for elastomeric or sliding bearings per ASCE 7-22 Section 17.8, including prototype and production test protocols, aging and scragging factors, and quality control documentation.

Peer Review & Plan Check Support

Technical documentation packages for Jacksonville building department review, addressing moat wall detailing, utility crossings, and the isolation system’s compliance path under Florida Building Code Chapter 16.

Regulatory framework

ASCE/SEI 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2021 (Florida Building Code 8th Edition incorporating IBC), ASCE 41-17 Seismic Evaluation and Retrofit of Existing Buildings, AASHTO Guide Specifications for Seismic Isolation Design, ASTM D4015 Standard Test Methods for Modulus and Damping of Soils by Resonant Column

Questions and answers

How much does base isolation seismic design cost for a Jacksonville project?

The engineering fee for a complete base isolation design package — including ground motion selection, isolator specification, nonlinear analysis, and peer review coordination — typically ranges from US$4,650 to US$9,260 depending on building height, irregularity, and the number of isolator types required. This excludes prototype testing and fabrication costs borne directly by the isolator manufacturer.

Does Jacksonville’s high water table affect base isolation performance?

Yes, and it’s one of the first factors we evaluate. The isolation interface and moat wall must be waterproofed and designed to resist buoyancy and hydrostatic pressure. We specify drainage systems and waterproofing details tested under the design flood elevation, and isolator materials are selected for long-term submersion resistance.

Can base isolation be retrofitted to an existing building in Jacksonville?

It is technically feasible but complex. The process involves temporarily supporting the structure on jacking columns, cutting the existing columns at the isolation plane, and installing isolators segment by segment. We follow ASCE 41-17 procedures for the structural assessment and require extensive probing of the existing foundation to confirm load paths. It’s most common for critical facilities where downtime after an earthquake is unacceptable.
